Zebra Label Printer
High-quality desktop printers deliver unmatched
reliability and versatility.
Zebra’s Desktop printer family offers a comprehensive choice
of direct thermal (LP) and thermal transfer (TLP) models for
2- and 4-inch wide printing—each with distinctive characteristics
to ensure your specific application is fully satisfied.
Small Size with No Compromise in Performance
Media loading is simplified thanks to the OpenACCESS™
design, which tucks the printhead into the printer’s top cover,
and provides a clear media window for easy monitoring.
Just drop the media in, shut the cover, and start printing!
Maximize workplace efficiency with a 5-inch media roll
capacity (for fewer label roll changes) and a space-saving,
compact design. Their durable, dual-wall construction ensures
that Desktop series printers will withstand rough handling in
your busy work environment.
Flexible Networking and Connectivity
For optimal integration in today’s IT environments, select from
serial, parallel, and USB interfaces, or opt for Ethernet
networking via Zebra’s ZebraNet® PrintServer II. Zebra’s
ZPL II®-based desktop printers offer easy-to-use advanced
printer management with ZebraNet™ Bridge Enterprise.

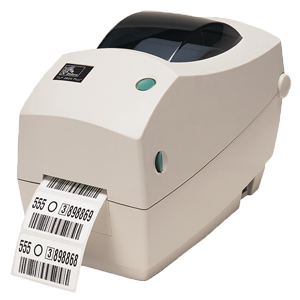

Zebra LP-2824 Desktop Printers
LP/TLP 2824
MAXIMUM PRINT AREA
Width: 2.2"/56 mm
Length in page mode (2" wide):
11"/279 mm (with standard memory)
22"/558 mm (with optional memory)
Length in line mode: Unlimited (LP only)
RESOLUTION
203 dpi/8 dots per mm
MEMORY
Standard: 512 KB Flash; 128 KB SRAM
Optional: 1 MB Flash; 256 KB SRAM
PHYSICAL CHARACTERISTICS
LP 2824 TLP 2824
Width: 3.9"/99 mm Width: 5.12"/130 mm
Depth: 7.5"/190 mm Depth: 9.25"/235 mm
Height: 6.8"/173 mm Height: 7"/178 mm
Weight: 2.7 lbs./1.2 kg Weight: 3.5 lbs./1.6 kg
(Weight of printer only; no media or options)
MEDIA SPECIFICATIONS
Label and liner width:
1"/25.4 mm to 2.36"/60 mm
Ribbon width (outside diameter):
1.33"/34 mm to 2.24"/57 mm (TLP only)
Ribbon length: 244'/74 m (TLP only)
